ANSI Standard Tubular Knob Lock Series Radius Drive Spindle Tubular Knob Special Design for Standard Duty Tubular Knob (5602PB-BK)

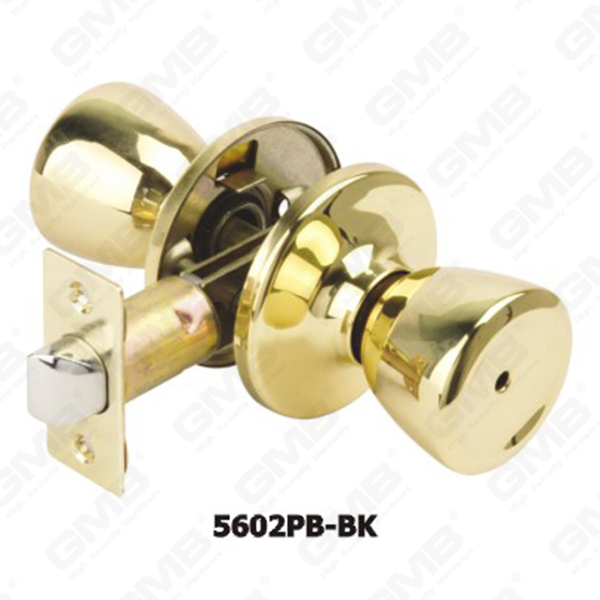

5602PB-BK

Tubular Knob Series-Radius-Drive Spindle

Special Design for Standard Duty.

Meets with ANSI A156.2 Grade 3. Exceeds 200,000 cycles.

•      Door Prep: cross bore 2-1/8"(54mm), Edge bore 1"(25mm), Latch face 1 "x2-1/4" (25x57mm).

•      Door Thick: Fit doors 1-3/8"(35mm) to 2"(50mm) thick.

•      Backset: Adjustable 2-3/8" (60mm) or 2-3/4"(70mm).

•      Latch: 1/2° throw dead latch and spring latch.

•      Cylinder: 5-pin removable core, Kwikset keyway. Can be Construction (CSK) keyed & Master (MSK) keyed.

•      Faceplate: Changeable square comer 1 "x2-1/4" (25x57mm) standard, radius comer also available.

•      Strike: Full lip D-shape 1-3/4''x2-1/4" (44x57mm) square standard, radius comer also available.

Exterior trim made of wrought brass assembly with Zinc Alloy chassis holds lock firmly provides great strength and durability

1/2" throw adjustable dead latch completely reversible for flat and beveled doors. Steel latch shell

All steel rack and cam mechanism provide long lifetime
